Anti-Panic | Emergency door opening mortise lock for cylinder latch protrusion 16mm complete stainless steel (304) anti-piracy on board (ISPS) | GSV-No. 3816 APZ

SKU: 3816 APZ

Standard product

Other optional Features

Optional - handle hub square position 0°

Optional - latch strike protection through POM insert

Optional - beveled faceplate

Optional - individual faceplate design

Optional - strongest handle rentention force

The handle retention springs are adjusted to handles according to the shipbuilding standard.

For handles deviating in dimensions and weight from that standard, the spring design for the highest available spring force can be applied by default.

The request for this spring force has to be explicitly stated.

Only for latch protrusion 14 / 16mm!

Optional - hole for ajar hook

Featured Videos
Description

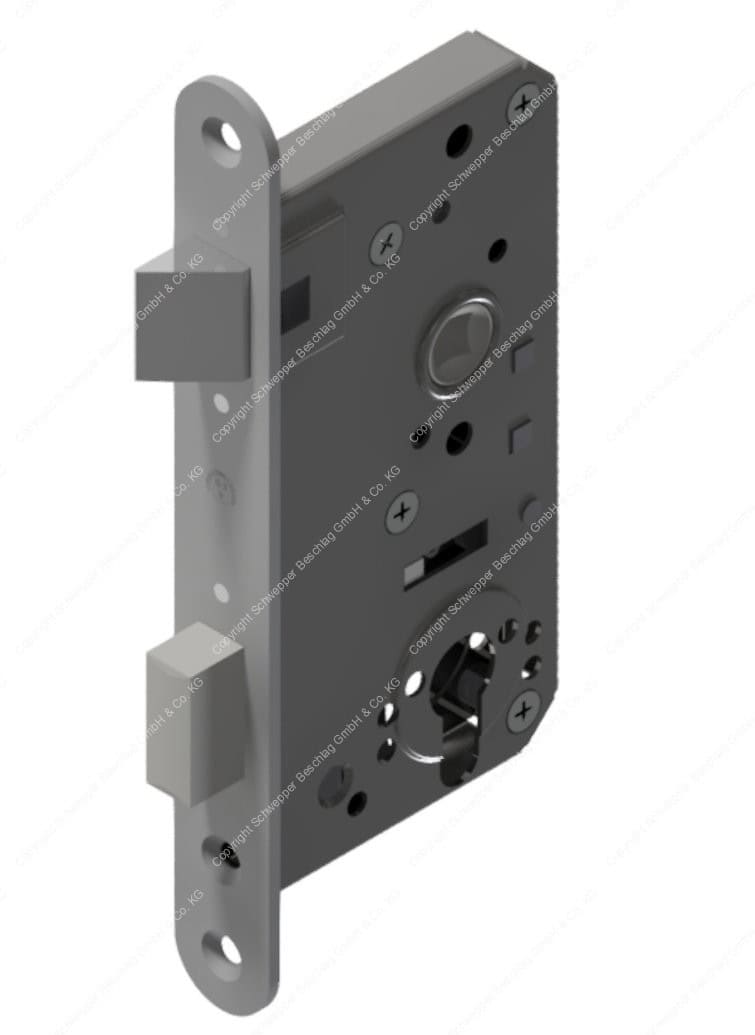

The Panic Escape Mortise Lock GSV No. 3816 APZ is a technically advanced solution for emergency exits and security-critical doors, particularly in maritime applications such as piracy protection in accordance with ISPS regulations. It is made entirely of stainless steel (A2), ensuring maximum corrosion resistance for use in extreme conditions.

The panic function in mortise locks is an essential feature that enhances safety in emergency situations. Below is a detailed description of the panic function in mortise locks:

First: Emergency Exit
The panic function allows individuals to quickly and easily exit a room or building in emergency situations such as fires, natural disasters, or security threats. It is a key component of the overall security system.

Second: One-Step Unlocking
When the panic function is activated, the door can be unlocked with a single motion, usually by turning the internal lever or pressing the panic bar. This simplicity is crucial in high-stress situations where individuals may be in a state of panic and need to exit quickly.

Third: No Key Required
Unlike conventional mortise locks that require a key to unlock from the inside, the panic function operates without any special tools or keys. This ensures that anyone can operate the lock without prior training.

Fourth: Always Accessible
The panic function is typically designed to always be accessible from the inside, regardless of whether the door is locked or unlocked from the outside. This ensures that individuals can exit freely without needing to consider the lock’s status.
